IT'S SIMPLE

Our Solution


Jenner technology driven solution for leachate or gas condensate needs. Our system eliminates the need for complex in well components.

JENNER GROUP TECHNOLOGY

Why We Developed This New Technology?


Our mission is to design cost-effective solutions which simplify the pumping system while improving site safety for the field technician.

The founders of Jeneer Group have been involved with landfill pumps for 20 plus years. In our field experience we have seen the daily struggles of the field technicians: removing leachate filled pumps from 100’ plus wells, the unwanted leachate bath, constant cleaning and rebuilding pumps, technicians going from well to well to determine if pumps are operating, critical condensate sumps watering in and shutting down other equipment.


Jeneer Smart Pumps Is The Solution

Is it the perfect landfill pump? We’re constantly working to make it better so won’t ever call it perfect but it does solve many problems and does it by being a simpler, smarter, lighter, stronger, and more versatile pump than you’ll find anywhere else.

While the industry continues to evolve pump technology, the two common problems we keep seeing are the number of down well components inside the pump that need maintaining & the sensitivity of the air and exhaust valve operation which needs handholding.

We’ve tackled these problems. Our team of mechanical and electrical engineers integrated the use of field proven sensors, microprocessors, pneumatic circuitry, and reliable cellular communication to put technology to work.

Read more
WE SAW PROBLEMS AND CREATED SOLUTIONS

How It Works

Operation


The pump uses an integrated sensor system or our new Tri probe technology to cycle the pump based on the well recharge rate. The above grade air management system eliminates complex in well components.

Smart Pump


The surface mounted logic controller can detect problems such as a compromised air line or high head pressure. It shuts the pump off, auto checks for system compliance and then restarts. These pumps trouble shoot themselves.

Evaluated Temperature


The Jeneer all stainless steel construction can handle the heat. The pumps can be used in well application up to 250F.

Communication Options

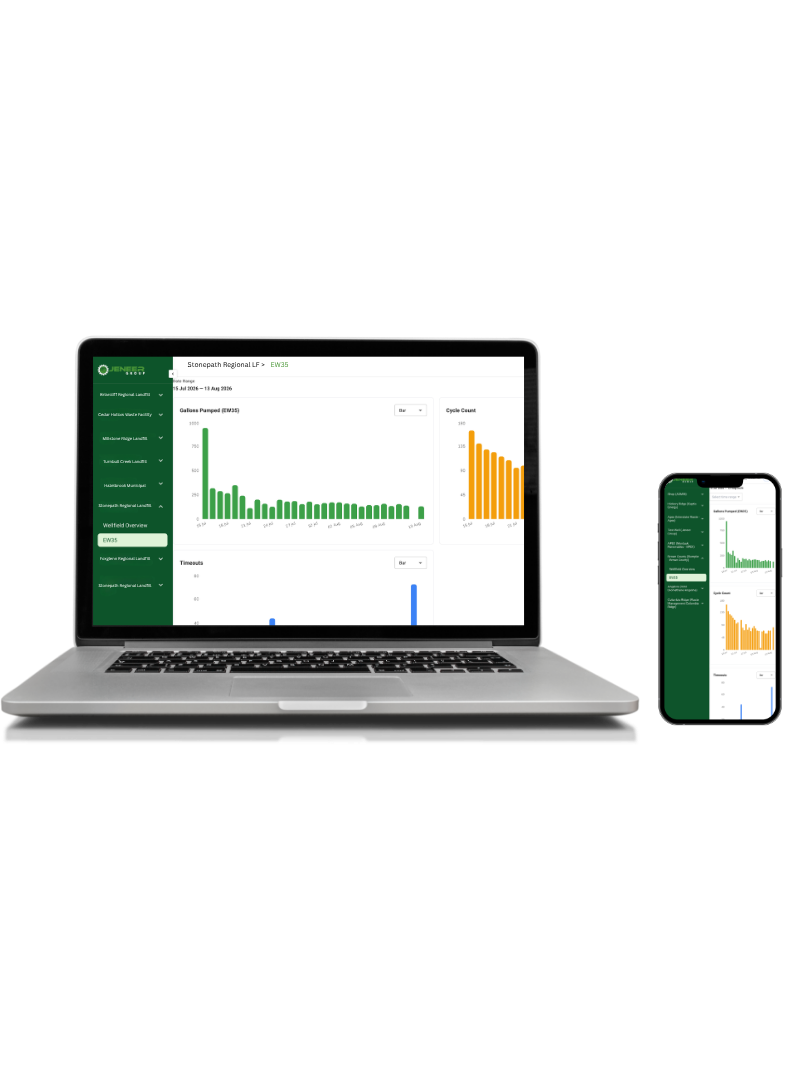

The new Jeneer Data APP sends pump data directly to you device and can be downloaded to easily manage data. The Communication Up-grade send the pump data to the cloud so you can remotely view and change pump parameters.

Simple Construction / Compact Design


Three bolts for complete disassembly. All stainless steel construction. Makes life easy. 30” length, 10 pounds, 3.5” & 2” pump diameters is simply elegant.

New “Maxidle” setting


If the pumps site idle past it specified time the pump will Auto Purge and restart the system. No babysitting required.

Works with Existing Installations


Start with the jeneer pump installation kit or integrate with your existing well head and tubing. The jeneer Pump only requires the air supply and fluid discharge tubing.

Support


We made a great pump but haven't stopped innovating. With very bite of data & bit of customer feedback we continute to refine and improve.

SOLUTION FOR LEACHATE OR GAS CONDENSATE NEEDS

4 Key Benefits

IMPROVE IMPROVE REDUCE SIMPLIFY LONG LIFE

Improve your Leachate and Condensate liquids Recovery


  • Simplicity of the jeneer down well pumps keeps them pumping longer
  • Original XR-56 uses an integrated sensor to cycle the pump
  • New Float Les - tri-probe technology to cycle the pump
  • Evaluated temperature compatible
REDUCE IMPROVE REDUCE SIMPLIFY LONG LIFE

Reduce your O&M
Man Hours & Costs


  • Our technology reduces or eliminates complex in well components
  • Minimizes inventory of high cost replacement parts
  • Pump maintenance and cleaning can typically be done at the well head
SIMPLIFY IMPROVE REDUCE SIMPLIFY LONG LIFE

Communication technology simplifies your pump data management


  • Remotely monitor and get your pump data with cellular network
  • Helps you quickly identify site issues
  • New Jeneer APP wirelessly transmits pump data to your device
LONG LIFE IMPROVE REDUCE SIMPLIFY LONG LIFE

Jeneer Pump Technology
Keeps you pumping longer


  • Pumps self-diagnosis monitors pump conditions and automatically restarts the pump
  • The pump will auto purge and restart the pump if it sits idle too long
  • Provides you with accurate pump data
  • Float position indicator so you know if your pump
INSTALLATIONS

Install Site Types


jeneer_condensate_installation
TYPICAL CONDENSATE INSTALLATION

Mounting pole is attached to flange bolt using the U clamp NEMA IV Module, Solar panel and battery bracket are attached to pole

  • Air supply to module is 3/8” PT
  • ½” air supply/exhaust to XR-56 Plus pump
  • 1” NPT cable gland for the sensor cable
  • 1” or 3/4” fluid discharge
jeneer_gaswell_installation
TYPICAL GAS WELL INSTALLATION

Mounting pole is strapped to well casing with strut brackets NEMA IV Module, Solar panel and battery bracket are attached to pole

  • Air supply to module is 3/8” PTC
  • ½” air supply/exhaust to XR-56 Plus pump
  • 1” NPT cable gland for the sensor cable
  • 1” or 3/4” fluid discharge
jeneer_horizontal_installation
XR-56 PLUS HORIZONTAL INSTALLATION

Half-Diameter float is used

  • Retained check ball seat
  • Stainless steel skids are added to the OD of the pump body
jeneer_cold_installation
COLD WEATHER INSTALLATION

Quick exhaust valve is installed in well

  • Air exhaust is plumbed through well seal
  • Solar panel and battery box installed above snow cover
20 Billion Cycles

Sensors

70Million Cycles

Pneumatic Circut

20Years

PC Boards

7 ≈ Years

Battery Life

Slide Just call us, we want to save you time and money. No matter how things are going, we can help make them better for you immediately.
(770) 817-7828
